Our range of Titan Pro engines are top of the class for reliability and power. In stock now, ready for immediate despatch.
These 15HP 420cc engines are a great middle-ground in our range, offering an increase in power on the 270cc engines, but with less weight than the largest in the line.
These are perfectly suited to a host of uses, including many in the garden, as well as those elsewhere. Your tillers and chippers are frequently compatible, but these can also be used with pressure washers, welders, water pumps and many other items in the construction and industrial trades.
- Utilising an OHV design allows for increased efficiency and optimum power transfer
- This engine affords greater stability owing to its ball bearing supported crankshaft
- Easy access spark plug and simple throttle control designs keep the engine from being overly complicated
- The large fuel tank and automotive-style fuel cap lend themselves to less - and simpler - filling
- The heavy-duty recoil pull-start makes starting as easy as possible
- A pair of oil drains/fills makes storage simple
- 190F equivalent engine

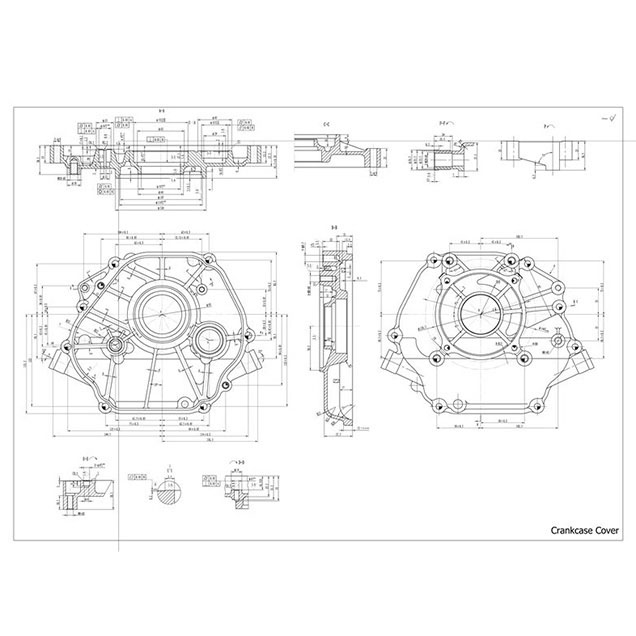

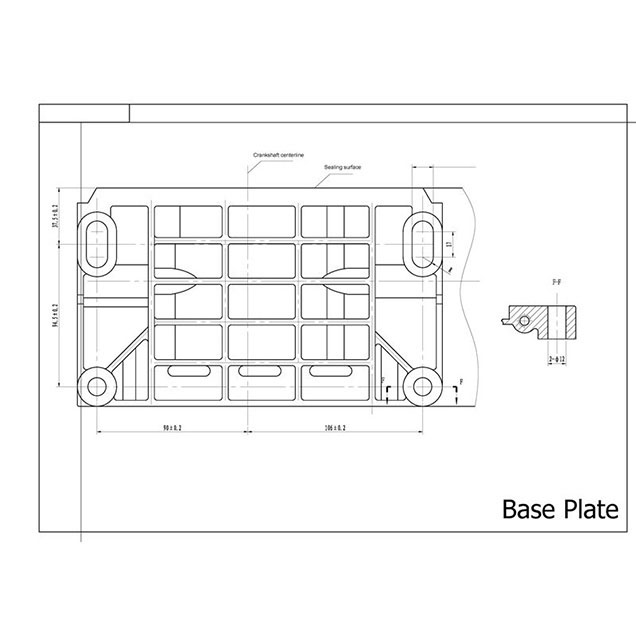

You can find a high-resolution PDF copy of the technical drawings for this engine by clicking here.
We also carry a range of spares for our engines - these can be found by clicking here.
Each engine comes equipped with the required key steel, manual and a toolkit.
Specifications
| Model: |
|
TP420-15H |
| Type: |
|
Parallel Shaft |
| Output Shaft Size: |
|
25.4mm (1") |
| Output Shaft Thread Size: |
|
Imperial, 3/8 - 24UNF (Recommend 30mm Bolt Length) |
| Key Size (mm): |
|
6.2mm x 6.2mm x 55mm |
| Ignition: |
|
Non-Contact Transistor |
| Bore x Stroke (mm): |
|
90 x 64 |
| Displacement (cc): |
|
420cc |
| Compression Ratio: |
|
8.3:1 |
| Power (horsepower): |
|
15HP |
| Max. Torque (N.m/rpm): |
|
26.0/2800 |
| Fuel Tank Capacity (L): |
|
6.5L |
| Engine Oil Capacity (L): |
|
1.1L |
| Engine Model: |
|
Single-Cylinder, OHV, Four-Stroke, Forced Air-Cooling |
| Fuel Consumption (g/kw.h): |
|
374 |
| Starting System: |
|
Recoil |
| Net Weight (KG): |
|
30KG |
| Packaging Dimensions (L x W x H) (mm): |
|
510 x 445 x 520 |
