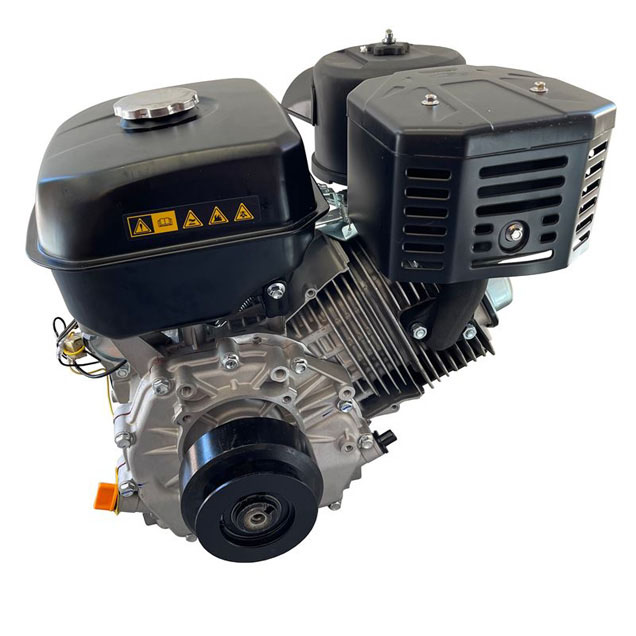

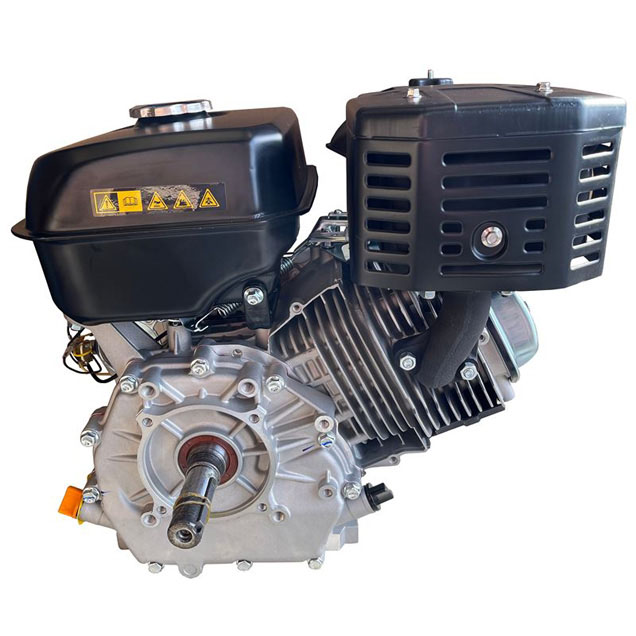

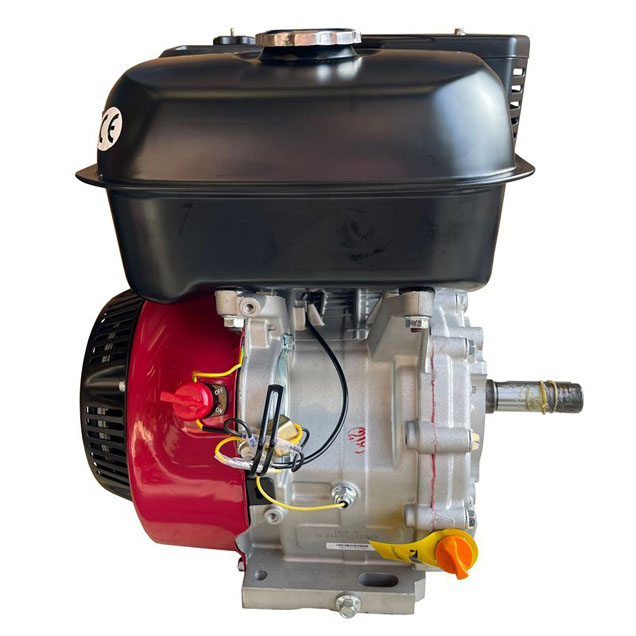

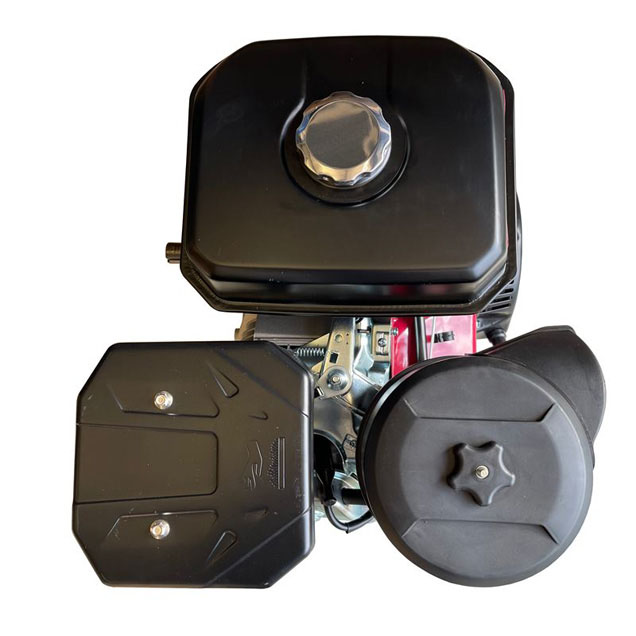

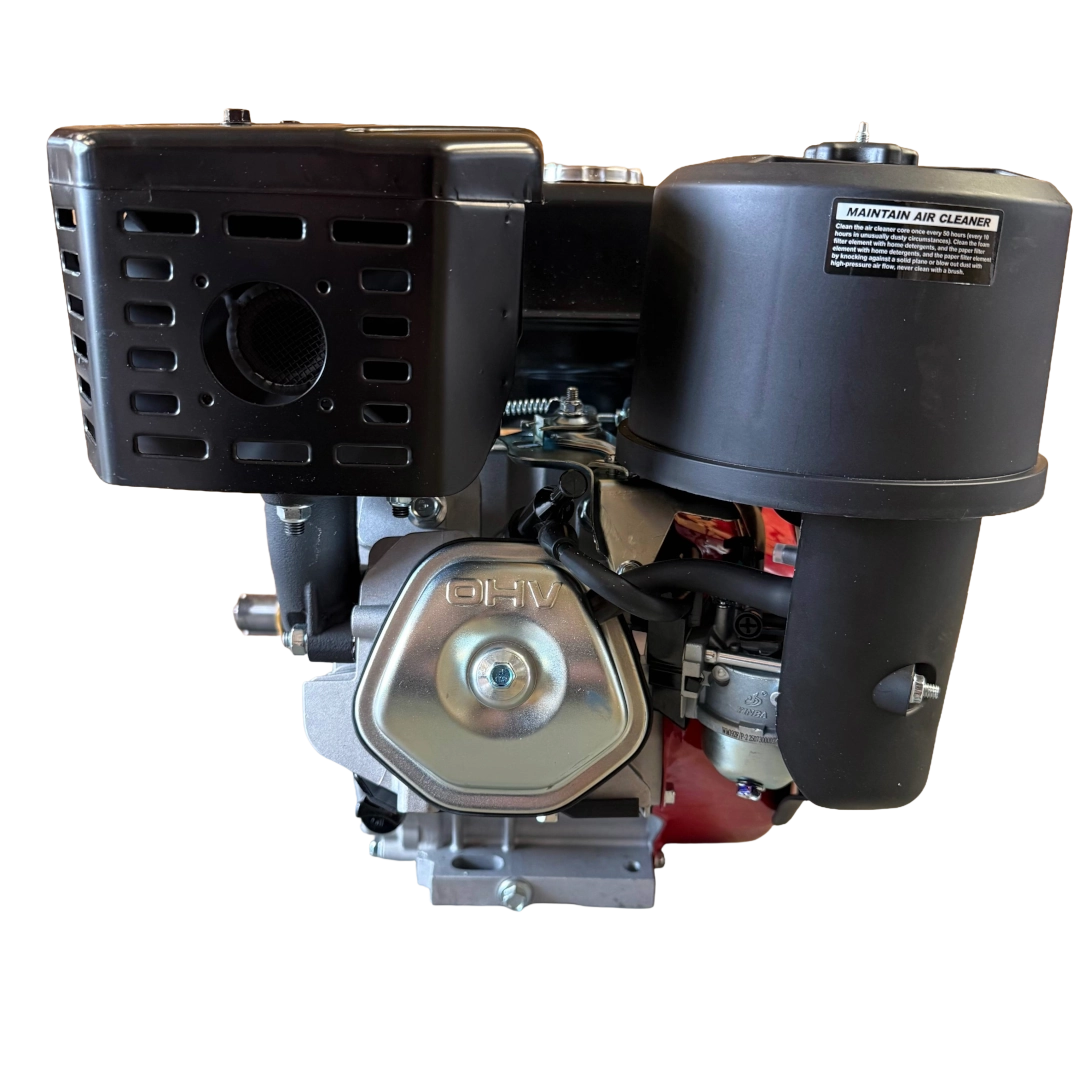

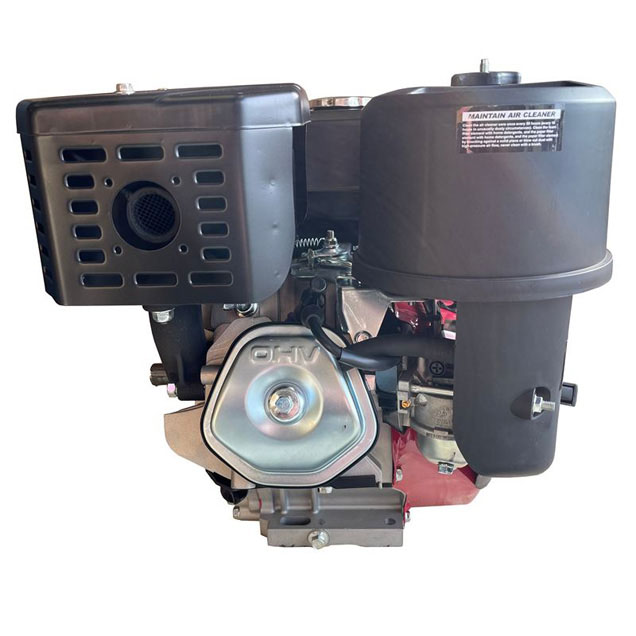

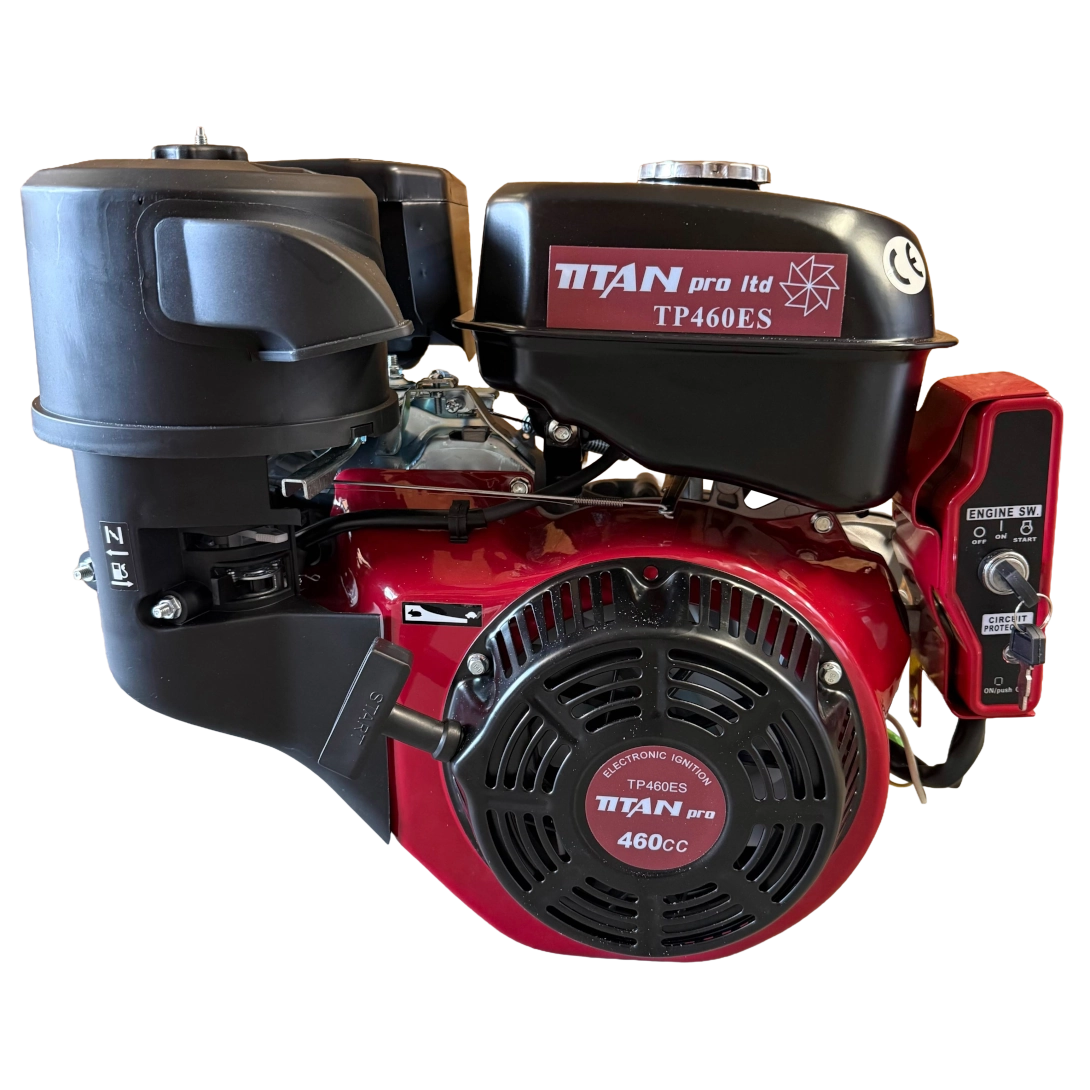

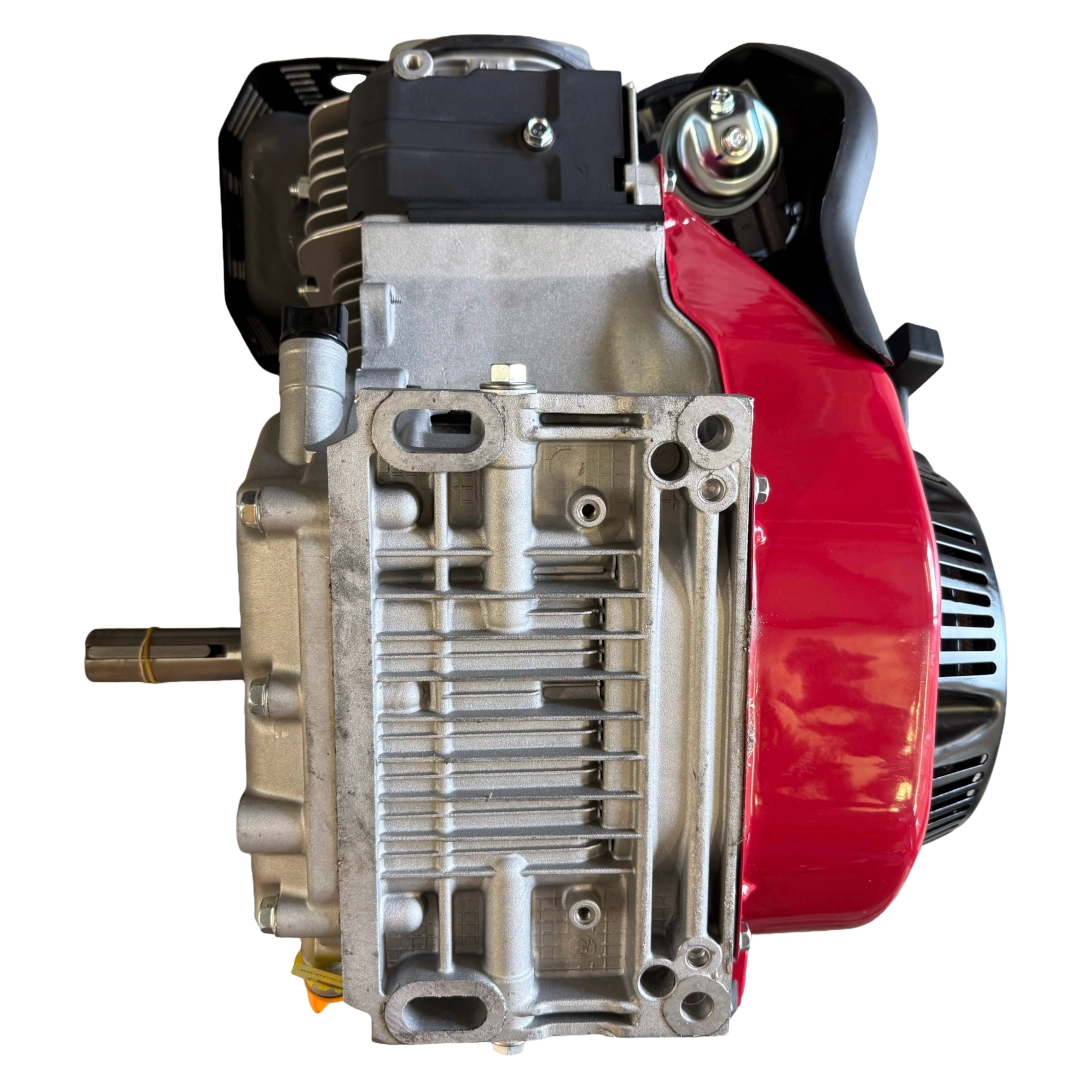

This 18HP 460cc petrol engine is the most powerful ever offered by Titan Pro - not only is it top of the class for reliability, but also in terms of raw power.
These engines are well-suited to the jobs that smaller engines can't deal with. Great for use with racing vehicles, such as go-karts and racing mowers, and large recreational vehicles, such as golf carts, two-seater buggies and mud boats.
- Utilising an OHV design allows for increased efficiency and optimum power transfer
- This engine affords greater stability owing to its ball bearing supported crankshaft
- Easy access spark plug and simple throttle control designs keep the engine from being overly complicated

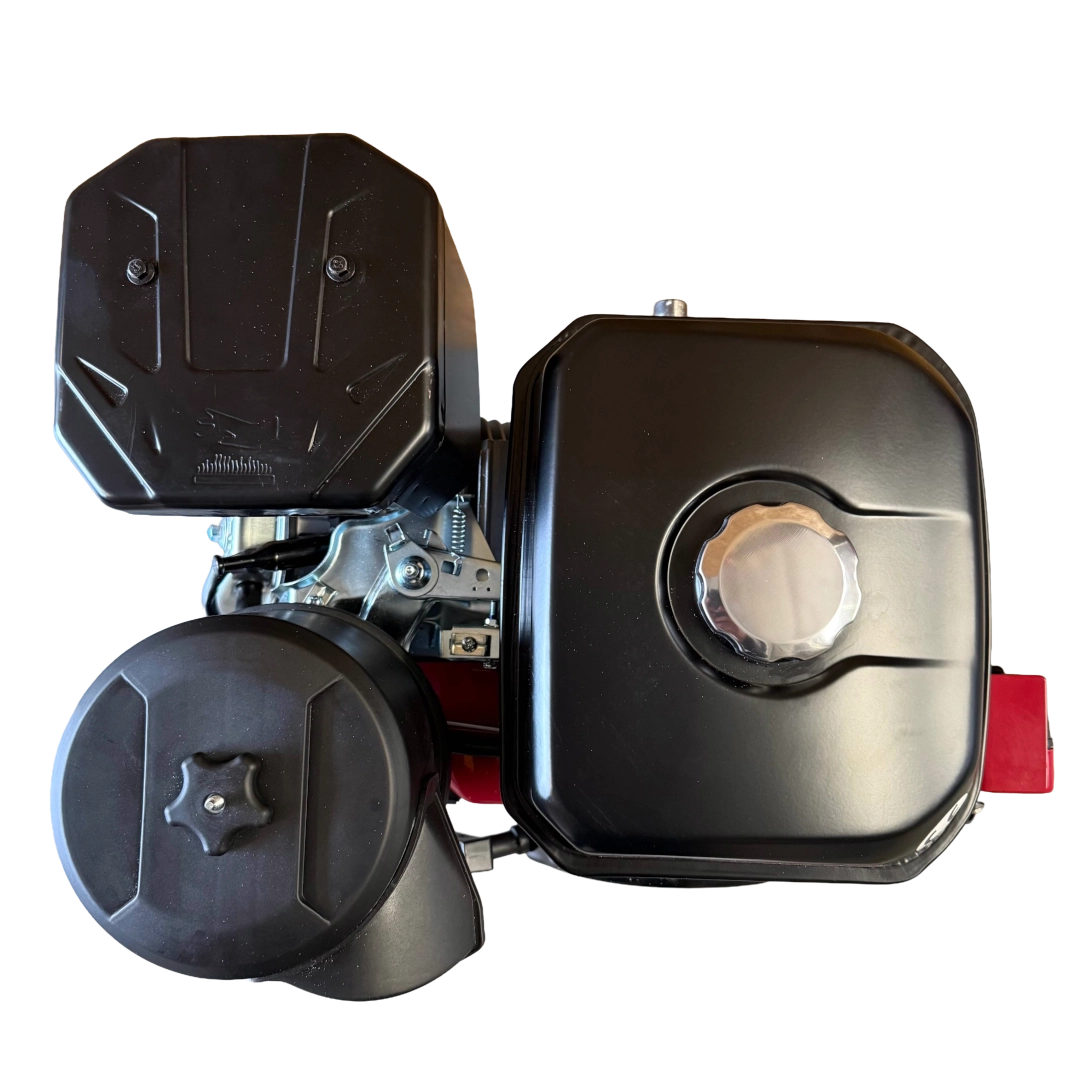

- The large fuel tank and automotive-style fuel cap lend themselves to less - and simpler - filling
- The heavy-duty recoil pull-start makes starting as easy as possible
- A pair of oil drains/fills makes storage simple
With a sleek design and the iconic Titan Pro red and black colourway, it's a stylish engine that is sure to compliment whatever you decide to fit it to.

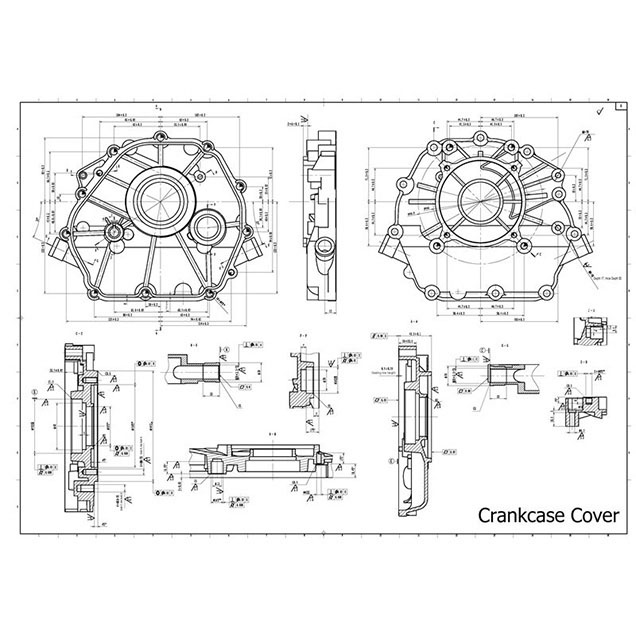

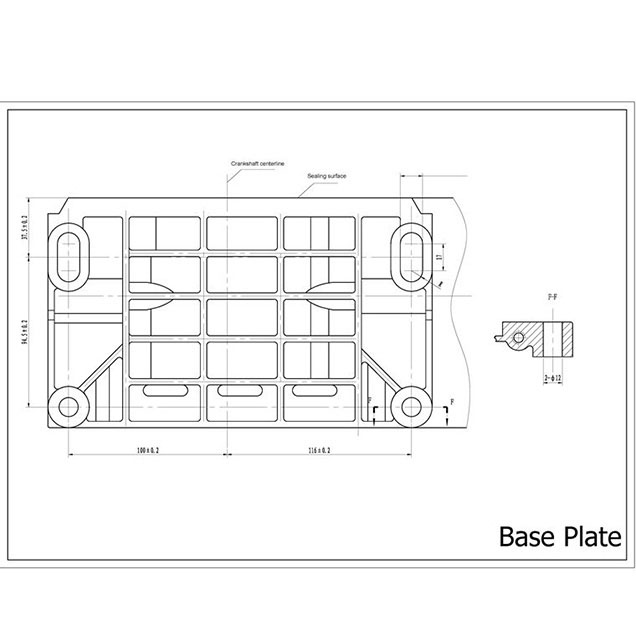

You can find a high-resolution PDF copy of the technical drawings for this engine by clicking here.
We also carry a range of spares for our engines - these can be found by clicking here.
Each engine comes equipped with the required key steel, manual and a toolkit. They are in stock now, ready for immediate despatch.
Specifications
| Model: |
|
TP460-18H |
| Type: |
|
Parallel Shaft |

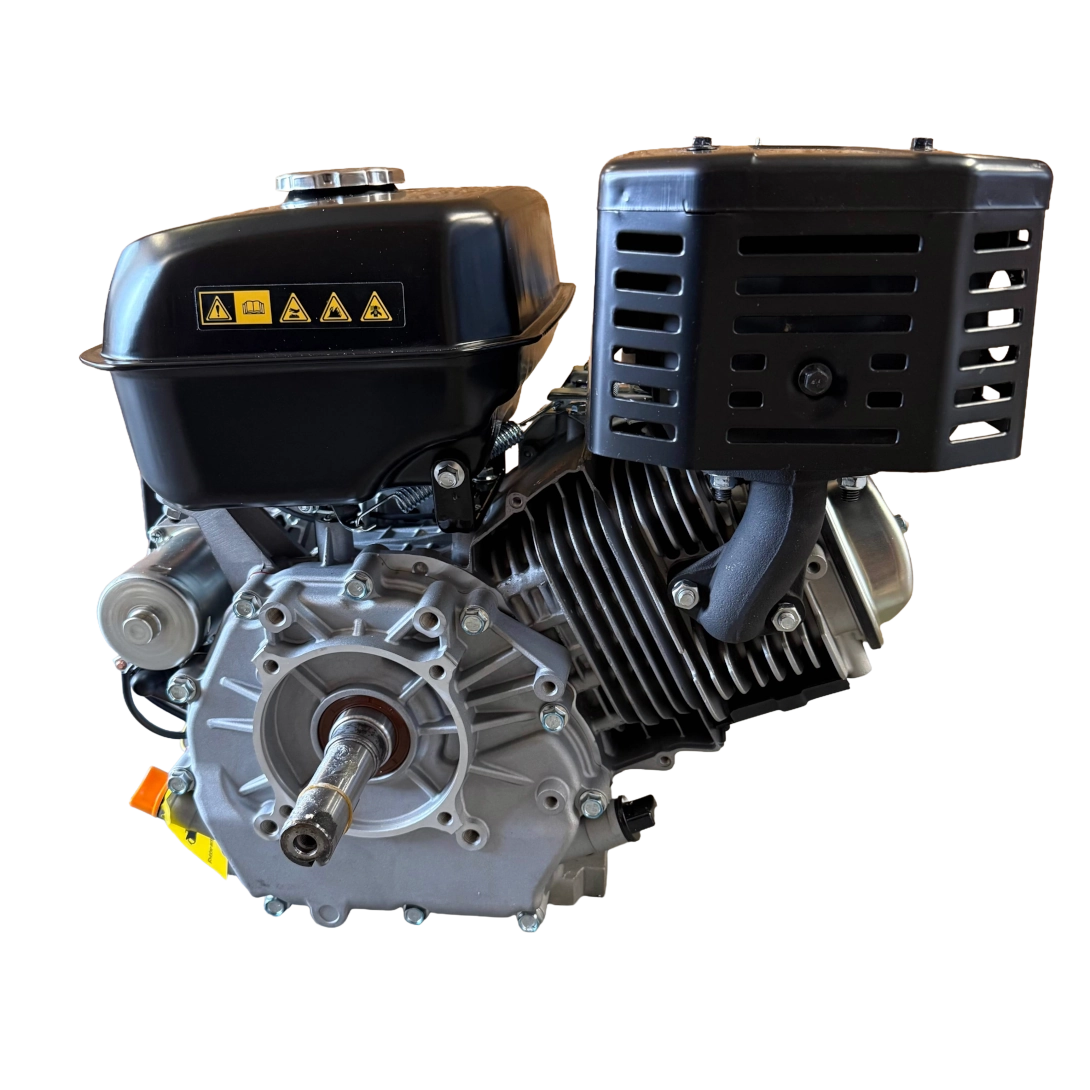

| Output Shaft Size (mm): |
|
25.4mm (1") |
| Output Shaft Thread Size: |
|
Imperial, 3/8 - 24UNF (Recommend 30mm Bolt Length) |
| Key Size (mm): |
|
6.2mm x 6.2mm x 55mm |
| Ignition: |
|
Non-Contact Transistor |
| Bore x Stroke (mm): |
|
92 x 69 |
| Displacement (cc): |
|
460cc |
| Compression Ratio: |
|
8.3:1 |
| Power (horsepower): |
|
18HP |
| Max. Torque (N.m/rpm): |
|
27.0/2800 |
| Fuel Tank Capacity (L): |
|
6.5L |
| Engine Oil Capacity (L): |
|
1.1L |
| Engine Model: |
|
Single-Cylinder, OHV, Four-Stroke, Forced Air-Cooling |
| Fuel Consumption (g/kw.h): |
|
374 |
| Starting System: |
|
Recoil |
| Net Weight (KG): |
|
31KG |
| Packaging Dimensions (L x W x H) (mm): |
|
510 x 445 x 520 |
Gary Warnock - 25/06/2024
Cracking engine
All good so far. Good build quality.
Delivery:
Ease of Use:
Assembly:
Build Quality:
Performance:
Dominic Morrell-Davies - 16/07/2023
review
Only comment would be if the 38 24 UNF output shaft bolt was supplied with the engine it would have saved 5 carriage to buy a 70p bolt
Delivery:
Ease of Use:
Assembly:
Build Quality:
Performance:
David Ham - 09/07/2023
18 HP Titan pro
This is very well made and engineered engine and was delivered on time and in good condition
Delivery:
Ease of Use:
Assembly:
Build Quality:
Performance:
Kathryn Hine - 13/03/2023
Titan Pro
I brought the engine to power a flail mower and other than a small test run have not used it yet.Out of the box first impression was it looked a well put together bit of kit and was impressed with the quality. After i had fitted it to the mower deck first start took about 3 pulls so very good
Delivery:
Ease of Use:
Assembly:
Build Quality:
Performance:
Dennis Suttenwood - 03/10/2022
Titan pro 18hp
Performing well in a 2 seater buggy plenty of power only down side is no electric start but it has provisions for a starter on the case so a flywheel change will sort that overall very happy and a superb price very good clone of a Honda at half the price and more power would recommend this engine
Delivery:
Ease of Use:
Assembly:
Build Quality:
Performance:
David Ham - 24/09/2022
Titan- pro evaluation
We dont really know. about the performance yet because we havent used it in anger yet. it is very easy to start and runs well. One minor suggestion it would be handy to have the footprint of the base with the hole centre dimension to help with installing it
Delivery:
Ease of Use:
Assembly:
Build Quality:
Performance:
