Our range of Titan Pro engines is top of the class for reliability and power. In stock now, ready for immediate despatch.

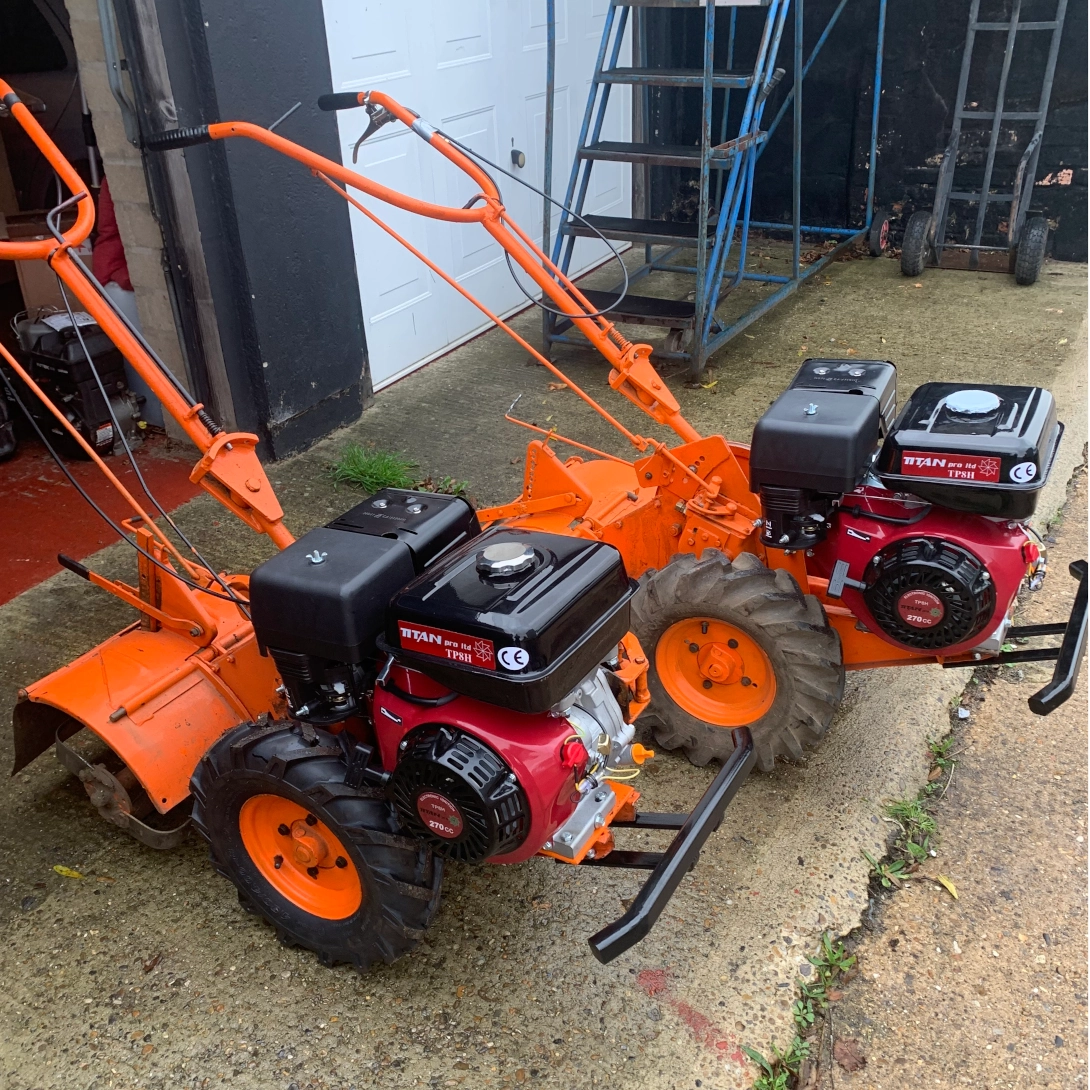

These 270cc engines are a great combination of power and size, offering up reliable power suitable for lawnmowers, chippers, generators and pressure washers, with a lightweight chassis meaning it won't be a pain to transport.

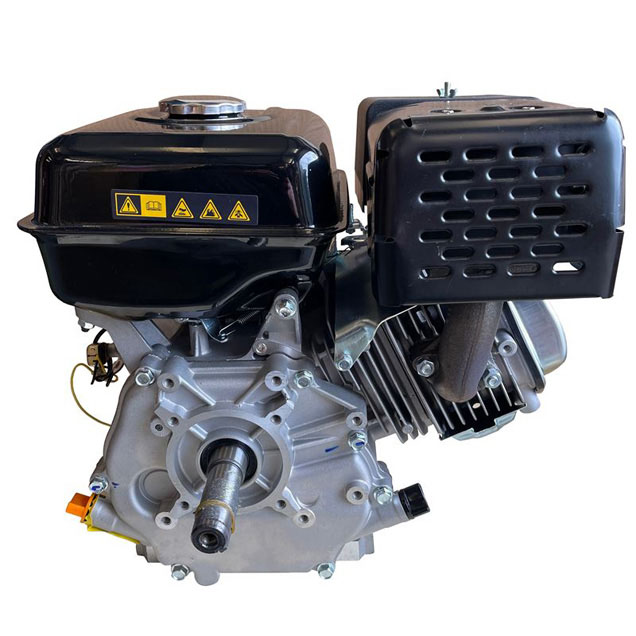

Its 1" (25.4mm) output shaft is a standard size across the industry, meaning it is compatible with a whole host of applications, including our pressure washer pumps.
- Utilising an OHV design allows for increased efficiency and optimum power transfer
- This engine affords greater stability owing to its ball bearing supported crankshaft
- Easy access spark plug and simple throttle control designs keep the engine from being overly complicated
- The large fuel tank and automotive-style fuel cap lend themselves to less - and simpler - filling
- The heavy-duty recoil pull-start makes starting as easy as possible
- A pair of oil drains/fills makes storage simple

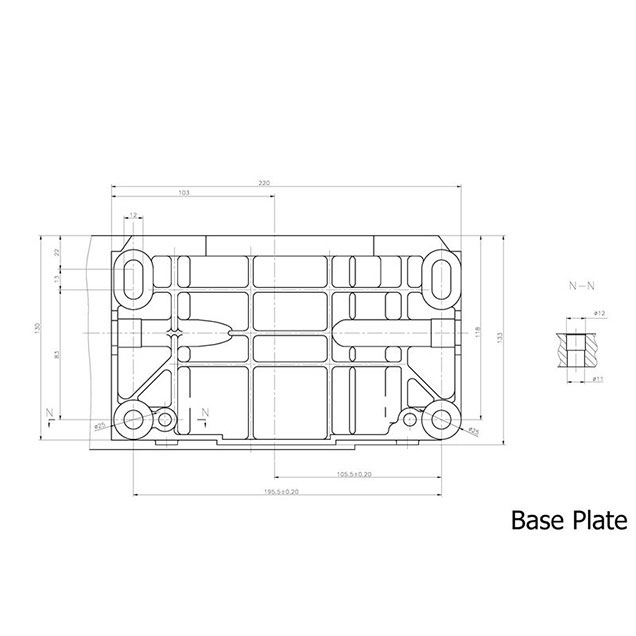

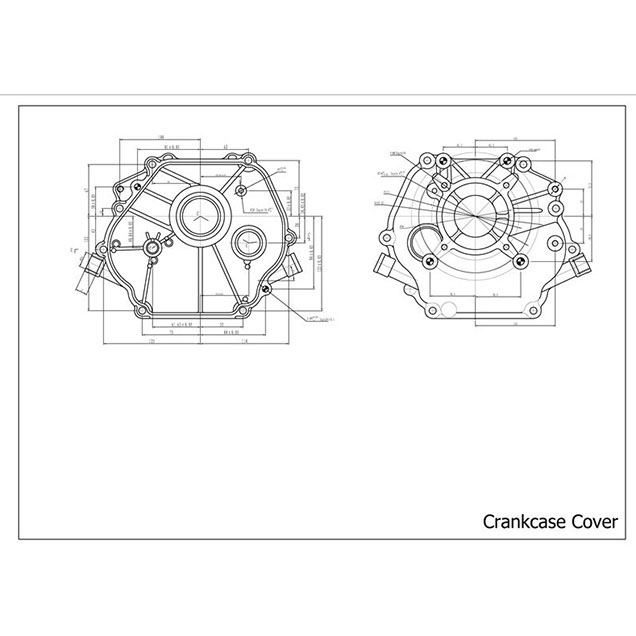

You can find a high-resolution PDF copy of the technical drawings for this engine by clicking here.
We also carry a range of spares for our engines - these can be found by clicking here.
Each engine comes equipped with the required key steel, manual and a toolkit.
Specifications
| Brand: |
Titan Pro |
| Model: |
TP270-8H |
| Type: |
Parallel Shaft |
| Output Shaft Size: |
25.4mm (1") |
| Output Shaft Thread Size: |
Imperial, 7/16 - 20UNF (Recommend 30mm Bolt Length) |
| Output Shaft Length: |
Approx. 72mm |
| Key Size (mm): |
6.2mm x 6.2mm x 54mm |
| Ignition: |
Non-Contact Transistor |
| Bore x Stroke (mm): |
77 x 58 |
| Displacement (cc): |
270cc |
| Compression Ratio: |
8.5:1 |
| Max. Torque (N.m/rpm): |
18.0/2800 |
| Fuel Tank Capacity (L): |
6.5L |
| Engine Oil Capacity (L): |
1.1L |
| Engine Model: |
Single-Cylinder, OHV, Four-Stroke, Forced Air-Cooling |
| Fuel Consumption (g/kw.h): |
374 |
| Starting System: |
Recoil |
| Net Weight (KG): |
27KG |
| Packaging Dimensions (L x W x H) (mm): |
510 x 445 x 520 |
